Hi-speed Band Saw Machines(Aluminium Bar,Section,Plate)
Location： Home /Products /Hi-speed Band Saw Machines(Aluminium Bar,Section,Plate)
-
Product Description

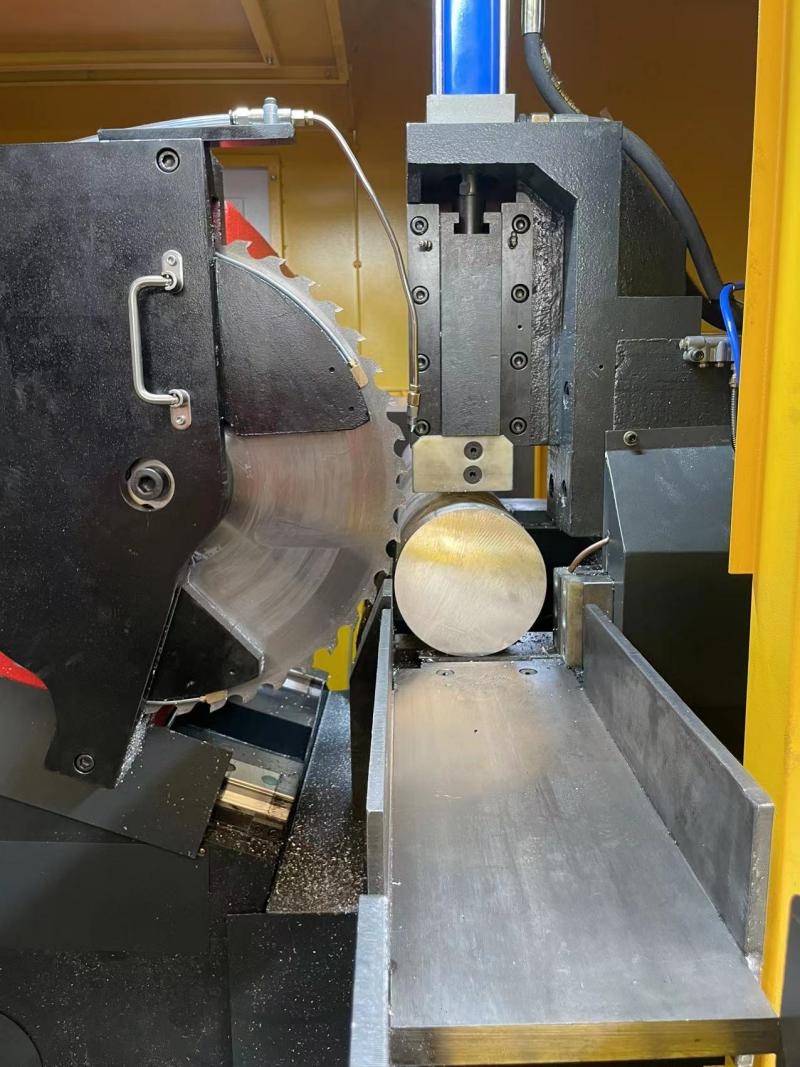

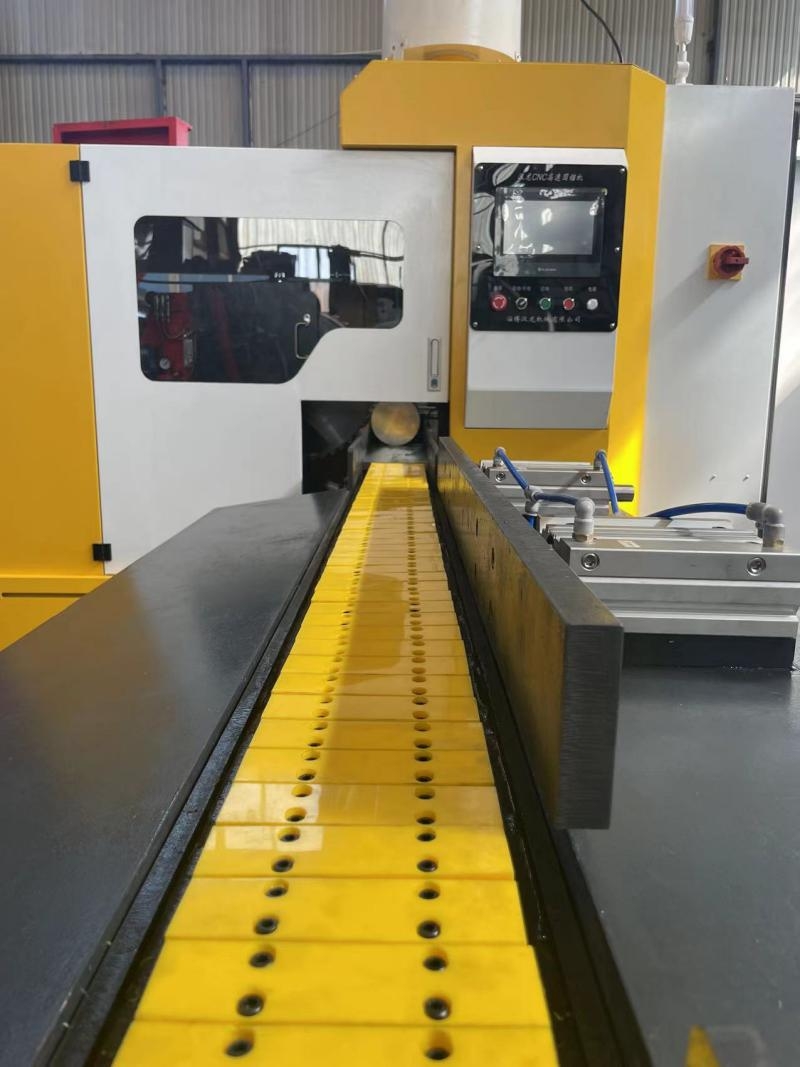

The CNC - 150 oblique push high-speed circular saw is mainly composed of machine bed, power head, feeding system, clamping device, automatic feeding, material bearing frame, hydraulic system, electrical system, spray cooling system, saw blade automatic lubrication system, saw blade cleaning device and other parts.
Main technical parameters and configuration
Specification | Company | Specifications |
Sawing range | mm | Round 80-160 |
Carbide circular saw blade | mm | φ500xφ50xt2.7 |
Spindle motor | Kw | Kw 15/18.5 (spindle servo) |
Spindle speed | Rpm | 500-300 |
Cut off feeding mode | AC servo motor+ball screw | |
Main clamp mode | Hydraulic horizontal and vertical clamping each | |
Saw blade debris removal device | Passive/active round wire brush | |
gear clearance compensation device | Magnetic powder brake | |
Feeding drive type | AC servo motor+ball screw
| |
Feeding clamp mode | Hydraulic horizontal clamping | |
Front cut-off length | mm | 15-20（optional） |
Remaining length of tai | mm | 90+α（αNot enough cutting length of one workpiece） |
Cutting length of single feeding | mm | 10-700 |
Allowable placing length | mm | 3000-6500 |
Hydraulic drive motor | Kw | 2.2 |
Hydraulic oil capacity | L | 100 |
Machine weight | Kg | 4500 |
